CableGrid is the exclusive distributor for the Brugg Cables Switzerland and KEI Cables India’s complete range of Cable and Accessories products in Australia and New Zealand.

Brugg Switzerland Cable and Accessories range extends up to 550kV and includes Joints, GIS, Transformer and Outdoor Sealing Ends.

KEI Cables was established in 1969 and manufactures a wide range of cables from 415V – 1.1kV, 3.3, 6.6, 11, 22 and 33 – 36kV and 66, 132 and 220kV under a licence agreement for Brugg Cables Switzerland.

KEI manufactures 60V – 1.1kV cables including: Instrument Cables with and without Nylon Jacket,  Thermocouple, Extension/Compensating, Concentric bonding cables, Marine & Offshore CablesSingle/Multicore Flexible Wires, LV Power Cables XLPE and PVC, Single/Multicore Flexible Wires, Control Cables, EPR/Rubber Cables, Signal Cables, Earthing cables,Special cable for Oil and Gas, Mining cable and machine trailing cable 60V – 1.1kV…etc. These LV cables have been manufactures and type tested to various IEC, BS, AS/NZS standards and KEI has supplied 1000’s of km of LV cable into Australia since 2008.

KEI has a complete range of 3.3 – 36kV cables manufactured and tested to AS/NZS 1429.1 and AS/NZS:1429.2 and Independently Type Tested by KEMA.

KEI manufacturers cables under licence for Brugg Cables Switzerland for all 66, 132 and 220kV cables. These cables are Independently Type Tested to IEC 60840 at 66 and 132kV and Independently Type Tested and PQ tested with Brugg accessories to IEC 62067 at 220kV by CESI in Europe.

CableGrid brings together the skills, knowledge and expertise of a great team of sales and installation personnel, with decades of combined experience in MV, HV and EHV cables, cable accessories and cable jointing, from 3.3 to 400kV AC and 80 to150kV DC.

Our business has been and continues to combine the decades of experience of both our sales and cable jointing teams, to offer our clients the best outcome for their specific projects requirements.

Furthermore, we can provide training for Utilities, that wish to purchase our 66, 132, 220, 275, 330, 550kV cable accessories or complete cable systems for XLPE and FFC/Oil filled cables.

CableGrid as a company holds the necessary insurances to meet industry standards.. Installation team members hold Contractors Licence, Electrical Jointing Licensing, State applicable Safety Induction Certificates and First Aid Certificates.

Lead-Nylon3   Lead-Nylon

Sales:

Our technical and sales team has worked with a wide range of cable and cable accessories from 415V – 400kV – XLPE, FFC, PILC cable since the early 1990’s. We have worked very closely with multiple manufacturers technologies from Italy, Switzerland, Germany, Sweden, Great Britain, Asia, Japan and South Africa.

Over the decades our sales team has gathered extensive experience from working very closely with multiple manufactures multiple technologies like – Heat Shrink, EPDM, Silicone and Resin type cable accessories.

Our team in the past has been involved in R&D projects, Type Testing, field installations as well as extensive lengthy training courses on MV, HV and EHV cable and cable accessories with multiple manufacturers. Our sales team regularly attends extensive hands-on training courses with each of our supplier divisions, to ensure the best understanding of each individual design and application for our client.

Jointing and Terminating of Power Cables and Installation:

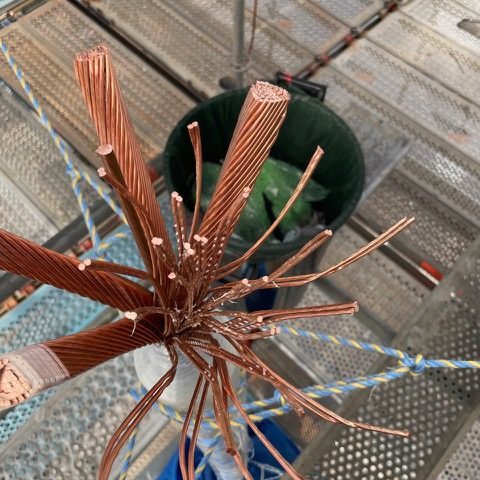

Our installation team has decades of experience dating back to the 1980’s and has installed products from manufacturers in Switzerland, Italy, Germany, Sweden and Japan, ranging from 3.3 to 400kV AC and 80kV DC with conductor sizes from 16 to 2500mm², in both copper and aluminium. The team has significant experience both domestically with Electrical Transmission and Distribution Utilities, Mines, Renewable Energy & Wind Farms, Rail Networks…etc. Including international projects world wide.

CableGrid jointers are trained and certified on numerous manufacturers cable accessories, a very important issue when it comes to confidence, versatility and reliability. CableGrid’s jointers will not install products, which we are not trained on and certified on.

The safety and welfare of our team and those working around them, is of the highest priority to CableGrid. Statutory training is carried out as required to ensure the validity of certificates is current. Additionally, the care and maintenance of the worksites and surrounding environment is non-negotiable for our team. In addition to our own WHSE policies and procedures, we incorporate any specific WSHE requirements of the sites on which we work.

CableGrid Clients:

CG-Client-logos-new

The CableGrid team has worked very closely over the years, with many large Utilities and Engineering Companies, including: AusGrid, Energex, Ergon Energy, Essential Energy, Endeavour Energy, Powercor/Citipower, TasNetworks, AusNet Services, AGL, ElectraNet, SA PowerNetworks, PowerWater, AGL, Western Power, Horizon Power, United Group Limited (UGL), Downer, Alstom, Siemens, ABB, Power Link, Consolidated Power Projects (CPP), Rio Tinto, Santos…etc

Product Range:

Low Voltage Cables:

Manufactured to AS/NZS: 5000.1:2005, AS/NZS: 5000.3:2003 and other applicable AS/NZS and IEC Standards and Independently Type Tested by KEMA, Type tested to AS/NZS, IEC, BS, EN, VDE, DIN, ASTM Standards.

LV Cables including: 60 – 1.1kV:

Instrument Cables with and without Nylon Jacket, Thermocouple, Extension/Compensating, Concentric bonding cables, Marine & Offshore CablesSingle/Multicore Flexible Wires, LV Power Cables XLPE and PVC, Single/Multicore Flexible Wires, Control Cables, EPR/Rubber Cables, Signal Cables, Earthing cables, Special cable for Oil and Gas cables, Mining cable and machine trailing cable 60V – 1.1kV…etc.

Lead sheath, SSWA, SWA, AWA, Nylon 6 and 12, PVC, LDPE, HDPE,MDPE, Rubber sheath, Ethylene Vinyl Acetate EVA, Silicon Insulated, Low Smoke Zero Halogen LSZH,LSZH, HSHF

Made to AS/NZS: 5000.1:2005, AS/NZS: 5000.3:2003 and other applicable AS/NZS and IEC Standards and Independently Type Tested by KEMA.

415 – 36kV Catalogue

Medium Voltage Cable: 3.3, 6.6, 11, 22, 33 – 36kV (50kV)

Manufactured and Type Tested AS/NZS 1429.1, IEC: 60502-1-2 and other applicable standards
Supply of 3.3 – 36kV cable,
– 1 core, 3 core, 3×1 core, Triplex
– XLPE
– Cu or Al, Stranded compact, Milliken, Segmented
– Copper Wire Screen (CWS), Copper Tape Screen (CTS), Lead, Corrugated Aluminium (CAL), – Corrugated Copper (CCU), Corrugated Stainless Steel (CSS), Aluminium poly laminated (APL), Copper Poly Laminated (CPL), Aluminium Wire Armoured (AWA), Steel Wire Armoured (SWA)…
– PVC, LSHF, LDPE, MDPE, HDPE, Nylon Jacket, Cypermethrin

We have a complete range of 3.3 – 36kV cables manufactured to AS/NZS 1429.1 and AS/NZS:1429.2 and Independently Type Tested by KEMA and other internationally recognized NATA accredited laboratories.

High Voltage Cable: 66, 110, 132 and 220kV (manufactured under licence agreement to Brugg Cables Switzerland)

Manufactured and Type Tested AS/NZS 1429.2, IEC 60840, IEC: Cable System IEC 62067.
Supply of 3.3 – 36kV cable,
– 1 core
– XLPE
– Cu or Al, Stranded compact, Milliken, Segmented
– Lead Sheath
– Corrugated Aluminium (CAL)
– Corrugated Copper (CCU)– 1 core
– Corrugated Stainless Steel (CSS)
– Aluminium Poly laminated (APL)
– Copper Poly Laminated (CPL)
– Aluminium Wire Armoured (AWA)
–PVC, LSHF, LDPE, MDPE, HDPE, Nylon Jacket, Cypermethrin,

KEI is the licensed manufactured for Brugg Cables Switzerland for all 66, 132 and 220kV cables these cables are Independently Type Tested to IEC 60840 at 66 and 132kV and Independently Type Tested and PQ tested with Brugg accessories to IEC 62067 at 220kV by CESI/FGH Europe and other and other internationally recognized NATA accredited laboratories.

66 – 220kV Power Cables Catalogue

Cable: 66, 132, 220, 275, 330 & 500kV
Designed and Type Tested to IEC 60840, IEC 62067.

  • Supply of 66 – 500kV XLPE Cu and Al cable made to IEC 60840 and other applicable standards
  • Supply of 66 – 500kV XLPE cable accessories for, Corrugated Aluminium, Corrugated Stainless Steel, Corrugated Copper, Lead Sheath, APL, AWA, PVC, LDPE, MDPE, HDPE

Joints & Terminations: 66, 132, 220, 275, 330 & 500kV

Designed and Type Tested to IEC 62271.209, IEC 60840, IEC 62067.

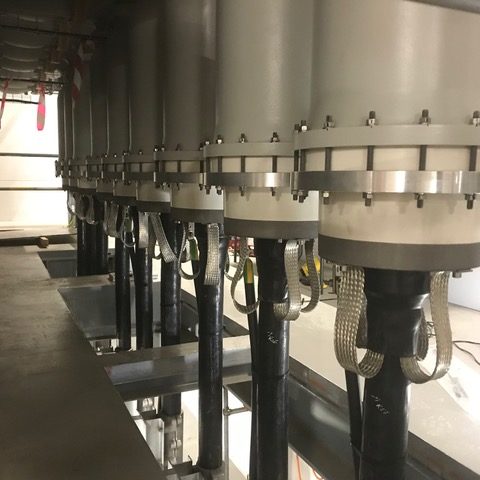

  • GIS Terminations: Dry Plug-in and Epoxy Resin Oil Filled GIS Terminations
  • Transformer Terminations: Dry Plug-in and Epoxy Resin Oil Filled GIS Terminations up to 500 kV
  • Outdoor Porcelain and Composite (Silicone) Terminations (sealing ends) Oil filled and Dry type up to 500 kV
  • Blast proof Outdoor Porcelain and Composite (Silicone) Terminations (sealing ends) Oil filled and Dry type up to 500 kV
  • Joints: straight through, cross bonding, screen break, copper sleeves, fibre glass sleeves, resin filed or heat shrink out sleeves for tunnel applications up to 500 kV

Fluid Filled Cable (FFC) 1 and 3 core cables, Oil Cable Joints & Terminations 22, 33, 66, 132, 220, 275, 330 kV

  • GIS Terminations: Epoxy Resin Oil Filled GIS Terminations up to 330 kV
  • Transformer Terminations: Epoxy Resin Oil Filled GIS Terminations up to 330 kV
  • Joints: straight through, cross bonding, screen break, copper sleeves, fiberglass sleeves, resin filed or heat shrink out sleeves for tunnel applications up to 330 kV
  • Outdoor Porcelain and Composite (Silicone) Terminations (sealing ends) Oil filled up to 330 kV
